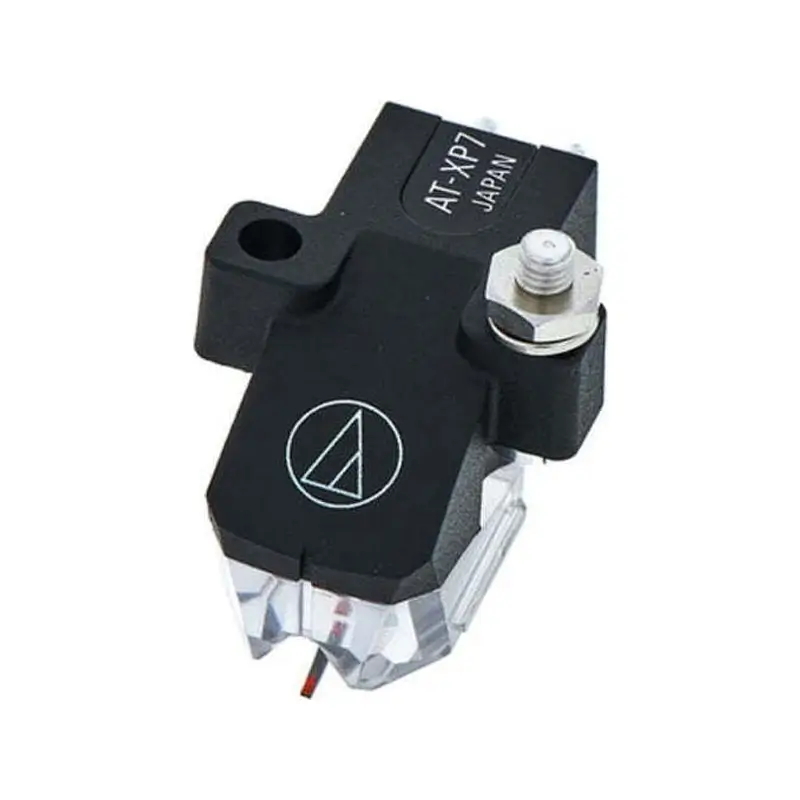

Audio-Technica AT-XP7 | Premium High-Output DJ Cartridge
Experience the pinnacle of DJ performance with the Audio-Technica AT-XP7. This Moving Magnet (MM) cartridge is specifically engineered to deliver a massive 6 mV output and an expanded frequency response of up to 20,000 Hz. Designed for the most demanding club environments, it offers audiophile-grade “Hi-Fi” clarity with the rugged tracking required for professional DJ applications.
Professional Performance Highlights:
-
Extra-High Output (6 mV): Provides a powerful, punchy signal that ensures your mix sounds loud and crystal clear, even on large club sound systems.
-
Superior 20kHz Response: Unlike standard DJ cartridges, the AT-XP7 reaches up to 20,000 Hz, capturing the high-end shimmer and detail of your vinyl.
-

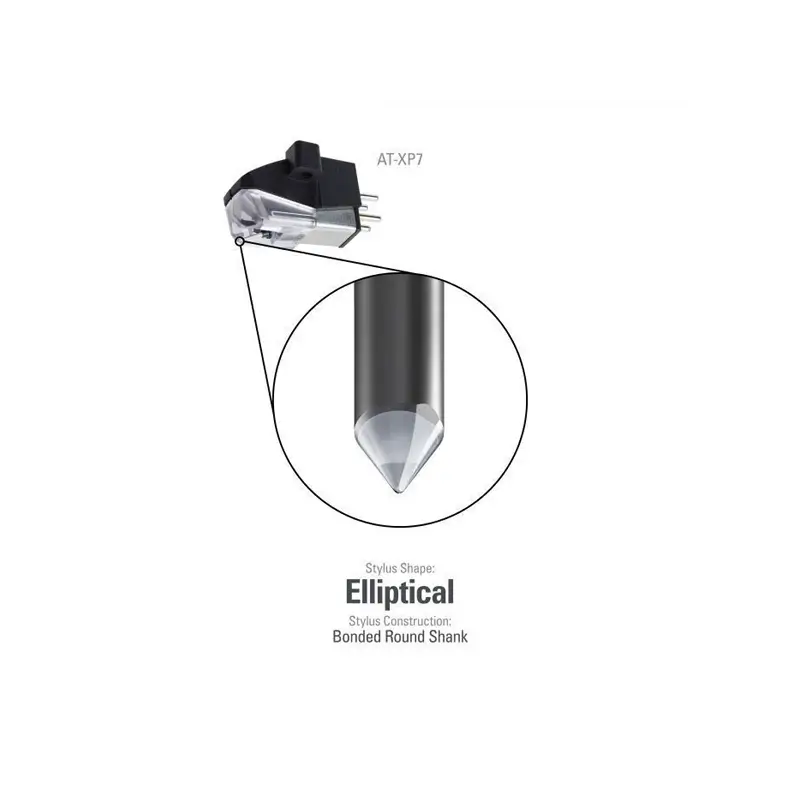

Precision Elliptical Stylus: The 0.3 x 0.7 mil Elliptical diamond offers better groove contact and lower distortion than conical alternatives.
-
Ultra-Rigid Carbon ABS: The needle frame (cantilever) is crafted from Carbon ABS, providing the perfect balance of stiffness for high-fidelity vibration transfer and durability for the booth.
-
Elite Tracking: Optimized to stay locked in the groove, even during heavy handling or high-vibration environments.
Technical Specifications:
| Attribute | Specification |
| Manufacturer | Audio-Technica |
| Type | Moving Magnet (MM) / Dual Magnet |
| Output Level | 6.0 mV (at 1 kHz, 5 cm/sec) |
| Frequency Response | 20 Hz – 20,000 Hz |
| Stylus Shape | Elliptical 0.3 X 0.7 mil |
| Tracking Force Range | 2.0 – 4.0 g |
| Vertical Tracking Angle | 20° |
| Recommended Load | 47,000 Ohms |
| Body Weight | 6.2 g |
