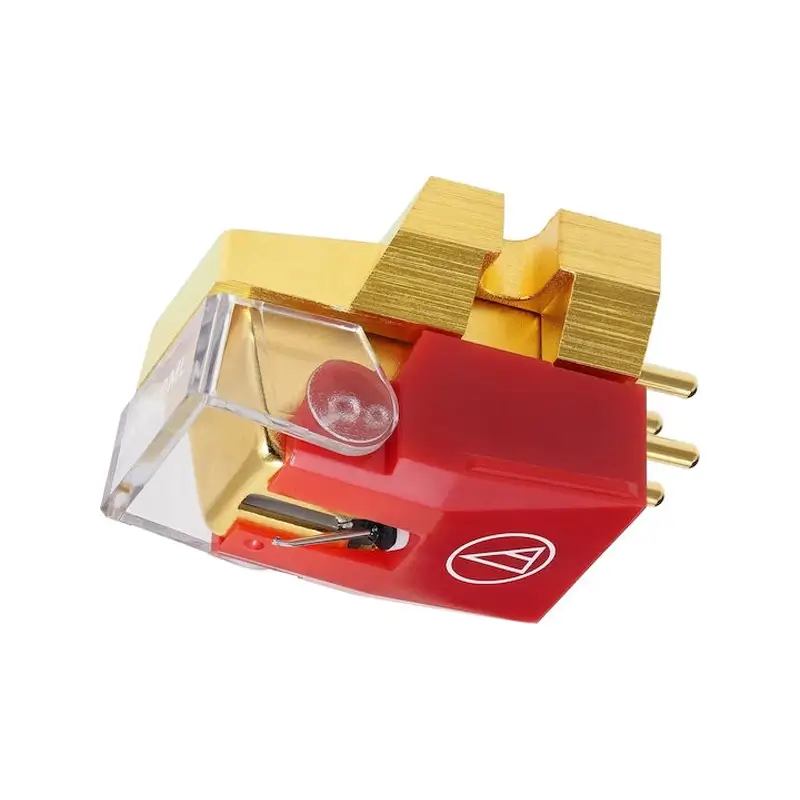

Audio-Technica VM740ML | 700 Series VM Dual Magnet Cartridge with MicroLine® Stylus
The Pinnacle of the VM Series: Metal Body, Master Sound
The Audio-Technica VM740ML is a high-end masterpiece that combines the surgical precision of a Nude MicroLine® stylus with a heavy-duty die-cast aluminum alloy housing. Designed for audiophiles who demand superior vibration control and flawless high-frequency reproduction, this cartridge delivers a clinical yet musical performance.
Premium Features & Audiophile Benefits
-
Vibration-Dampening Aluminum Body: The die-cast aluminum housing reduces internal resonances and provides a solid foundation for the generator system, resulting in clear sound image localization and a cleaner background.
-
Nude MicroLine® Stylus ($2.2 \times 0.12 \text{ mil}$): The MicroLine® diamond mimics the shape of a cutting stylus, reaching deeper into the groove than any other profile. This virtually eliminates “inner groove distortion” and ensures consistent performance throughout the entire record side.
-
PCOCC Copper Coils: Internally wired with Pure Copper by Ohno Continuous Casting (PCOCC), ensuring that the audio signal remains pure, transparent, and free from electrical interference.
-
Aluminum Tapered Pipe Cantilever: A rigid yet lightweight tapered design that perfectly transfers stylus movement to the dual magnets for a highly dynamic response.
-
Elite Stereo Imaging: Boasting $28\text{ dB}$ channel separation and an incredibly tight $1.0\text{ dB}$ channel balance, this cartridge creates a massive, well-defined 3D soundstage.
Technical Specifications
| Feature | Elite Performance Specs |
| Origin | Handcrafted in Japan |
| Housing | Aluminum Die-Cast Body |
| Stylus Profile | Nude MicroLine® |
| Coil Type | Paratoroidal PCOCC |
| Frequency Response | 20 Hz – 27,000 Hz |
| Channel Separation | 28 dB (at 1 kHz) |
| Output Voltage | 4.0 mV |
| Weight | 8.0 g (Heavier body for added stability) |
