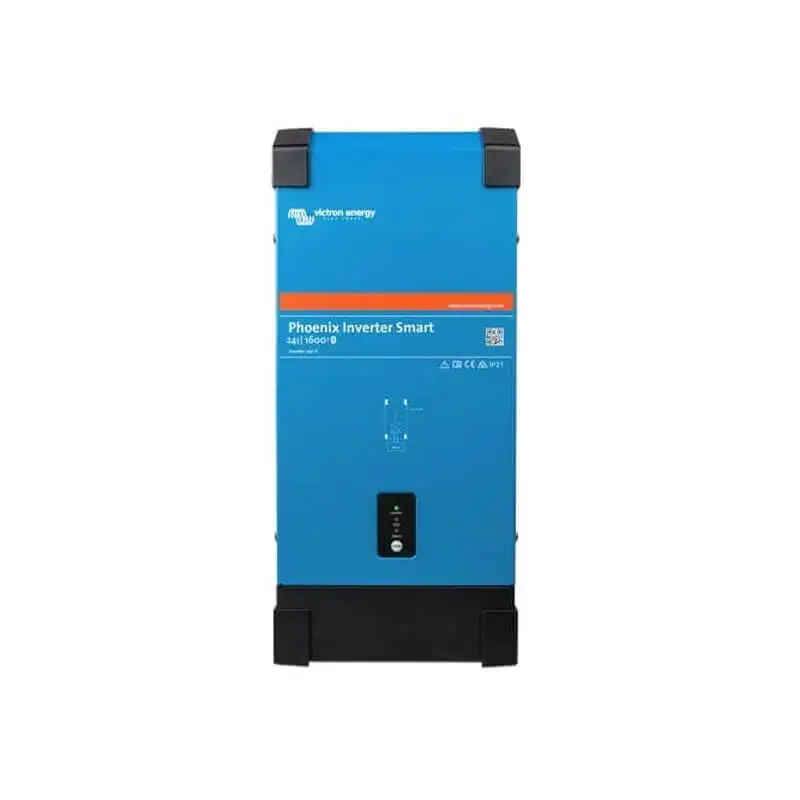

Pure Sine Victron Phoenix Inverter 24/1600 Smart 1600VA 24V
927,52 €
In stock (can be backordered)
Pure Sine Victron Phoenix Inverter 24/1600 Smart 1600VA 24V
Pure Sine Victron Phoenix Inverter 24/1600 Smart
Bluetooth built-in: fully configurable with a tablet or smartphone
- Low battery voltage alarm
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage: 210 – 245V
- Frequency: 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sense level
- Alarm relay
Monitoring:
- In- and output voltage, load and alarms
VE.Direct communication port
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset
value. Once in standby the inverter will switch on for a short period every 2,5 seconds
(adjustable).
If the load exceeds the preset level, the inverter will remain on.
Remote on/off
A remote on/off switch or relay contact can be connected to a two pole connector.
Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or
the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis
of a vehicle, for example).
Power: 1600VA
Input Voltage Range: 18.6-34V
Protection Standard: IP21
5-Year warranty
Weight | 12 kg |
---|---|
Dimensions | 12,5 × 21,9 × 48,5 cm |
VENDOR | VICTRON |
