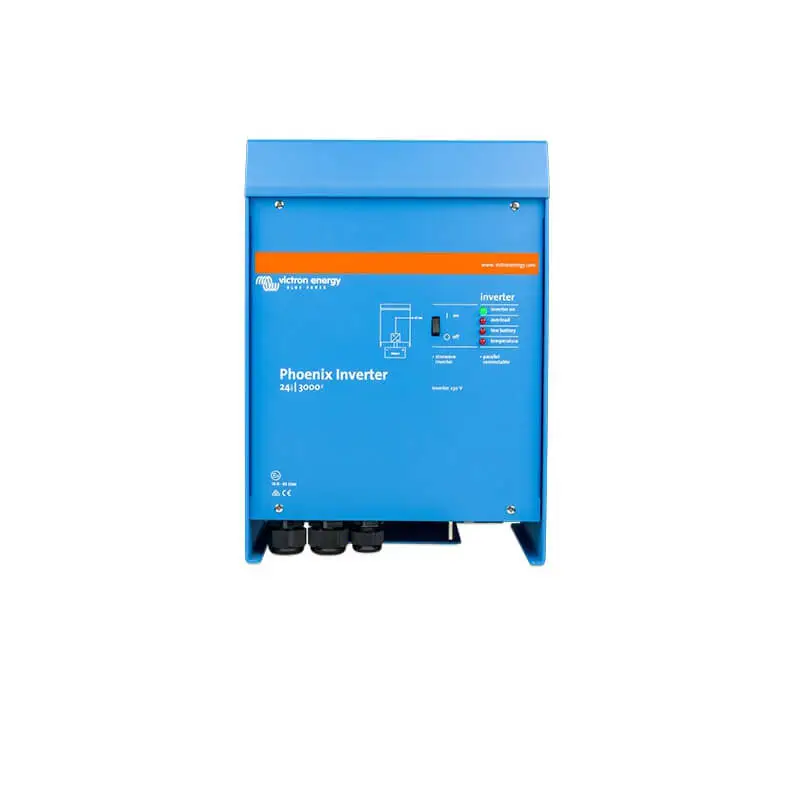

Pure Sine Victron Phoenix Inverter 24/3000 3000VA 24V

Pure Sine Victron Phoenix Inverter 24/3000 3000VA 24V

SinusMax – Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

Extra start up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.

Virtually unlimited power thanks to parallel and 3 phase operation capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

Communications interface
These larger Phoenix inverter models come with a VE.Bus port. All you need to connect to your PC is the MK3 USB VE.Bus to USB interface. Together with our VictronConnect or VEConfigure software, which can be downloaded free of charge from Victron Energy’s website, parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to a GX device (eg Cerbo GX) for monitoring and control.

New applications of high power inverters
The possibilities of paralleled high power inverters are truly amazing. For ideas, examples and battery capacity calculations please refer to Victron Energy’s book ‘Energy Unlimited’
(available free of charge from Victron Energy and downloadable from www.victronenergy.com).

Power 3000VA

Peak power 6000W

Output voltage 230VAC

Protection IP21

5-Year warranty
