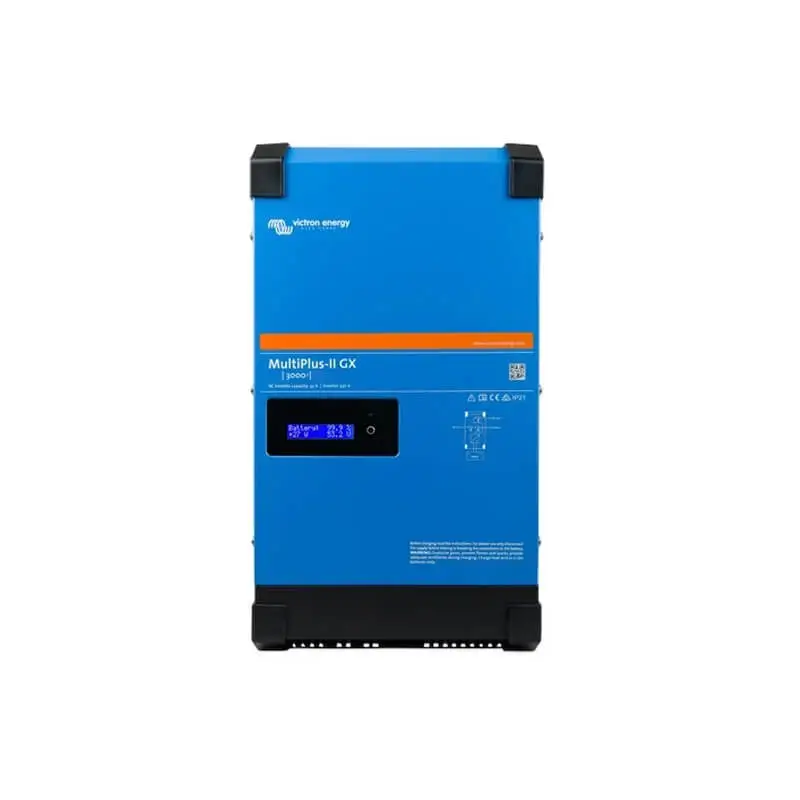

Victron Energy MultiPlus-II 24/3000/70-32 230V GX

An Inverter/Charger with device networking built-in, the MultiPlus-II 24/3000/70-32 GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features – such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power – can all be controlled straight from your phone or smart device. Remote monitoring is also possible.

Features of the MultiPlus-II 24/3000/70-32 GX

A MultiPlus-II with LCD and GX functionality

The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.

Display and Wi-Fi

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

GX device

The integrated GX device includes:

A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.

A USB port.

A Ethernet port.

A VE.Direct port.

Applications

The MultiPlus-II  GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.

Parallel and three phase operation

Only one GX unit is needed in case of Parallel and three phase operation.

When coupled with a Cerbo GX you can monitor and control your MultiPlus-II GX and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more…”

If you want to access directly, use the separate GX Touch, a MFD or the VictronConnect App thanks to its added Bluetooth capability.

Watch the new video that explains all there is to know about installing the new Cerbo GX & GX Touch 50.

Made in the Netherlands

5-Year Warranty
