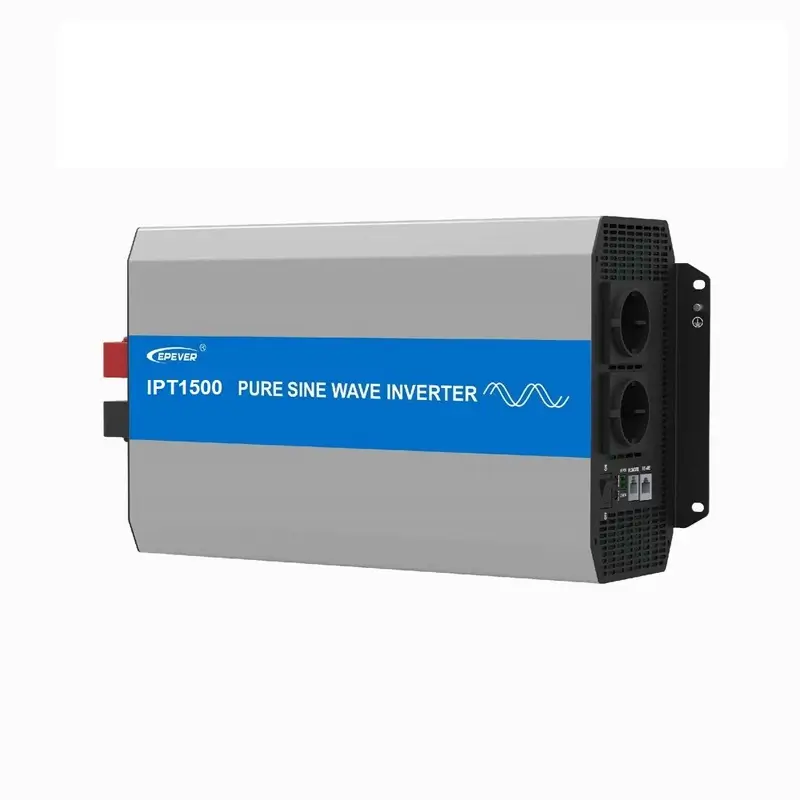

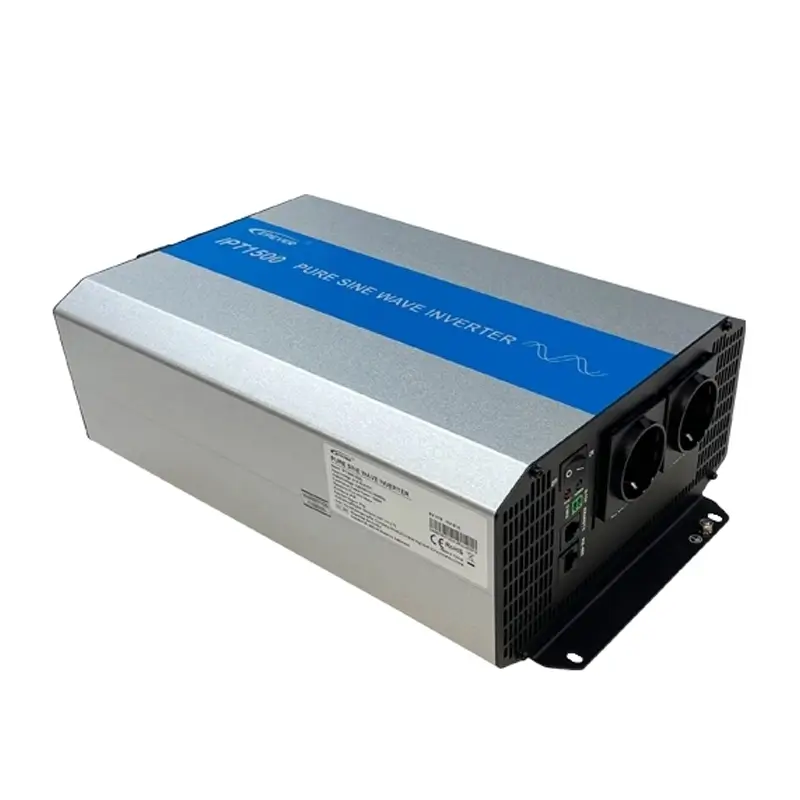

EPEVER EP Solar Pure sine wave inverter 24V, 1500W
398,78 €
& Free Shipping for orders over €300 — max total weight 3 kg.Availability: In stock (can be backordered)
Continuous Output Power
1,500W@35℃@Rated input voltage
Surge Power
3,000W@5S
Power-on Surge Current
< 100A
Output Voltage
230VAC (-7%–+3%)
Output Frequency
50Hz ± 0.2%
Output Wave
Pure Sine Wave
Output Distortion THD
≤ 4% (Resistive load)
Load Power Factor
0.2–1 (Load power ≤ Continuous output power)
Rated Input Voltage
24VDC
Input Voltage Range
21.6–32.0VDC
Rated Output Efficiency
> 88.0%
Maximum Output Efficiency
> 92.5% (30% loads)
Standby Current
< 0.15A
No-Load Current
< 0.9A
RS485 Port
5VDC/200mA
Mechanical Parameters
Input Terminal
M6
Dimension (L × W × H)
387mm × 228mm × 118mm
Mounting Size (L × W)
361mm × 145mm
Mounting Hole Size
Φ6mm
Net Weight
5.6kg
| Weight | 5,8 kg |
|---|---|
| Dimensions | 37,1 × 22,8 × 11,8 cm |
