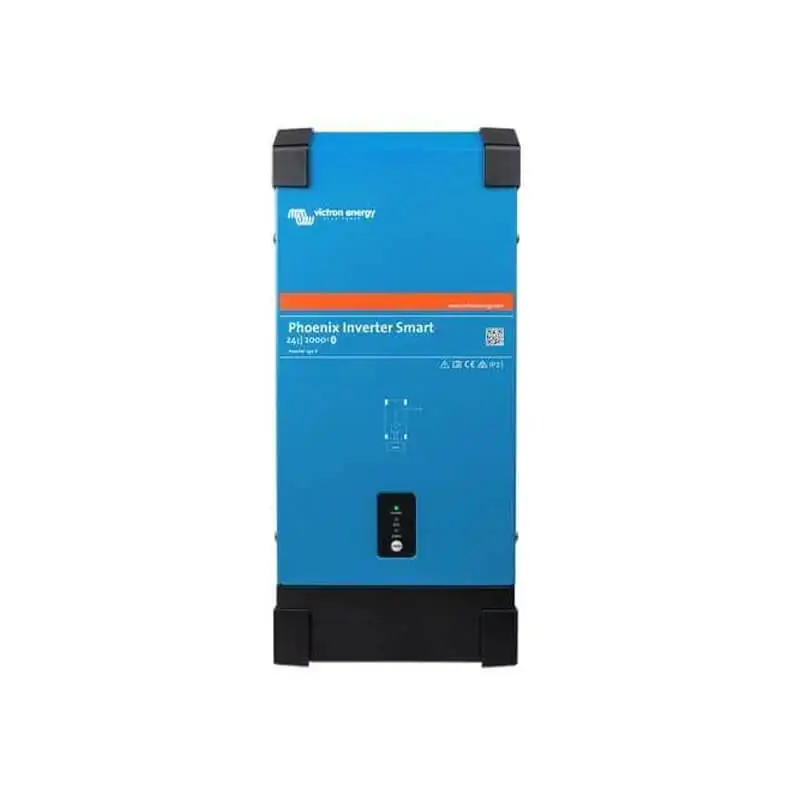

Pure Sine Victron Phoenix Inverter 24/2000 Smart 2000VA 24V

Pure Sine Victron Phoenix Inverter 24/2000 Smart 2000VA 24V

Pure Sine Victron Phoenix Inverter 24/2000 Smart

Bluetooth built-in: fully configurable with a tablet or smartphone

• Low battery voltage alarm
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage: 210 – 245V
• Frequency: 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level
• Alarm relay

Monitoring:

• In- and output voltage, load and alarms

VE.Direct communication port

The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset
value. Once in standby the inverter will switch on for a short period every 2,5 seconds
(adjustable).
If the load exceeds the preset level, the inverter will remain on.

Remote on/off

A remote on/off switch or relay contact can be connected to a two pole connector.
Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or
the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis
of a vehicle, for example).

Power: 2000VA

Input Voltage Range: 18.6-34V

Dimensions: 485 x 219 x 125 mm

Protection Standard: IP21

Weight: 13kg

5-Year warranty
